PRODUCT DESCRIPTIONS

DISRUPTIVE TECHNOLOGY INNOVATIONS

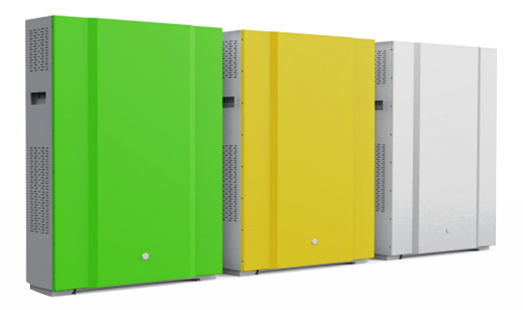

Powerwall

Safe and Green

The safest LiFePo4 Battery, no fire and no explosions


Smart BMS

Smart BMS with self-balance for each serial of cells


6000 Cycles

Super Long 5-10 years working lifespan

Plug in and Play

Plug in batteries then working, easiest installation;


Certifications

CE, MSDS, UN38.3, IEC, IS09001

Model

DK_BP51100_PW

DK_BP51200_PW

Battery Type

Prismatic-Lifepo4

Prismatic-Lifepo4

Rated Capacity

100Ah

200Ah

Rated Voltage

51.2V

51.2V

Energy

5.12kW

10.24kW

Dimensions(L x W x H mm)

720 x 445 x 220

720 x 880 x 220

Weight

60kg

120kg

Array

16S1P

16S2P

Discharge Cut-off Voltage

48V

48V

Max Continuous Discharge Current

100A

100A

Peak Discharge Current

150A for 3 seconds

200A for 3 seconds

Recommended Discharge Current

50A

100A

Charging Limited Voltage

57.6V

57.6V

Max Charging Current

50A

80A

Recommended Charge Current

25A

50A
