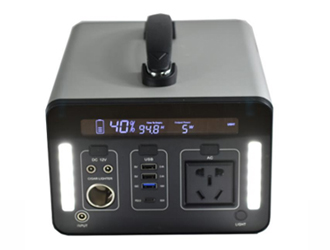

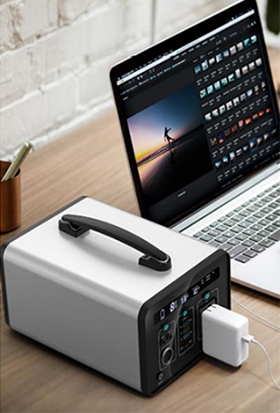

Portable Battery


Parameter

DK_BP1433_PB

DK_BP1467_PB

Battery

Battery Type

Lithium ion battery

Battery Power

500Wh

1,000Wh

Voltage

14.8V

14.8V

Capacity

33.8Ah

67.5Ah

Life Cycle

≥1,000

BMS(Protection)

Over/Under voltage, High/Low temperature, Over current, Short circuit


AC output

Output Voltage

100-240V(Depending on the factory settings in different countries and regions)

Output Frequency

50-60HZ(Depending on the factory settings)

Output power

AC500W about 30 Minutes

AC1,000W about 5 Minutes

AC300W about 85 Minutes

AC500W about 100 Minutes

AC100W about 270 Minutes

AC100W about 540 Minutes

Waveform

Pure sine wave

Efficiency

70% Load: >90%

DC output

DC 5.5 port

DC12V5A

Cigarette lighter port

DC12V12A

Efficiency

70% Load: >93%

USB output


USB1: 5V2.4A, USB2: 5V2.4A, USB3: QC3.0, 5-12V, 18W(MAX)

USB-C output

PD 3.0

5 ~ 20V, 60W(MAX)

LED lighting


Low Bright/High Bright:5W(MAX)/ 10W(MAX)

Charge

Adapter

19V5A about 6h

19V5A about 12h

Car

13V8A about 6h

13V8A about 12h

PV

24V5A about 7h

24V5A about 13h

Power consumption

Quiescent current

<100uA

Product weight

Net weight/Gross weight

5.9KG/7.6kg

9.9KG/12kg

Product volume

Size/Packing

200x176x146 / 340x295x250 mm

200x294x146 / 450x355x300 mm

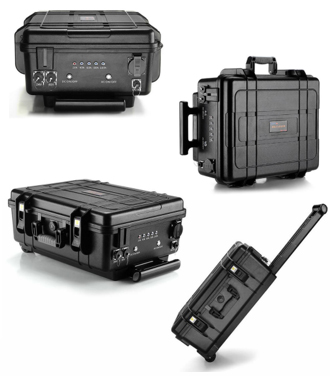

Parameter

DK_BP4840_PB

DK_BP4860_PB

Battery Type

48V40Ah Lithium battery

48V60Ah Lithium battery

Continuous output Power

2,000W

3,000W

Peak output power

4,000W

6,000W

Output voltage

AC pure sine wave 220V/50HZ or 110V

DC output

DC48V(DC42V~DC58.8V), DC24V

Battery capacity

51.8V40Ah(2,000Wh)

51.8V60Ah(3,000Wh)

Charging time

About 5 hours

About 5 hours

Charging AC voltage

AC 100 ~ 260V

Charging DC voltage

58.8V

Protection

Over-voltage, Over/Under temperature, Overload, AC short circuit protection

Working environment

-20℃~60℃

Dissipation

Air fan for forced cooling

Dimension

515x434.5x199 mm

560x450x200 mm

Shelf material

ABS

Weight

24kg

29kg
